SUPER PROMECHA

Drafting Pencil
for the Professionals!

SKU: PM-1500P Categories: ,

Features:
1) Pipe length adjustment mechanism

Twist the gripper to regulate the pipe length
Pipe length adjustment range: 0.0mm to 4.0mm

2) Lead release length adjustment mechanism

By sliding the screw type ring(1), the lead release length can be adjusted to your purpose.
Adjustable length range is 0.2mm to 2.0mm

3) Detachable clip

By twisting the side as shown in (1), clip can be detached.

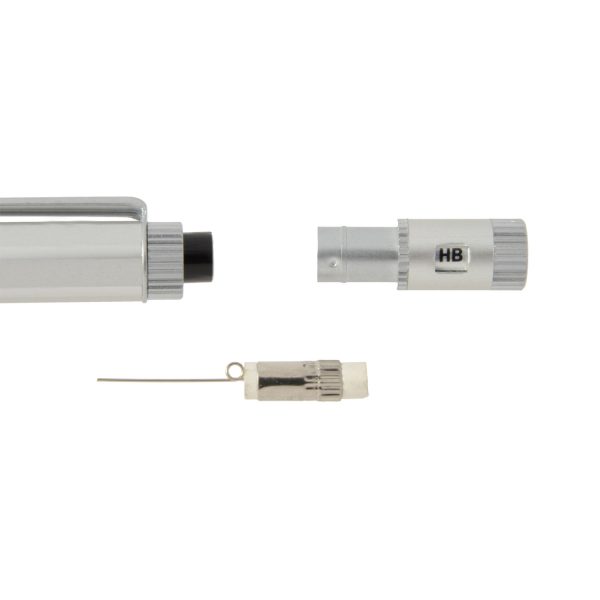

4) Lead quality indicator

Built in print: HB/B/4H/3H/2H/H/F

How to change the indicator of lead quality?

Step 1> Twist the part show (1) towards the side as indicated by arrow.
Step 2> Twist the part shown(2) towards the side as indicated by arrow.
Step 3> Twist the part shown(3) towards the side as indicated by arrow.

Specification:

●Size: (Body) Length 151mm, Shaft Diameter 8.3mm
●Weight 19g
●Material: Cap: Aluminum , Knock: Brass
●Lead size: 0.3mm/0.5mm/0.7mm

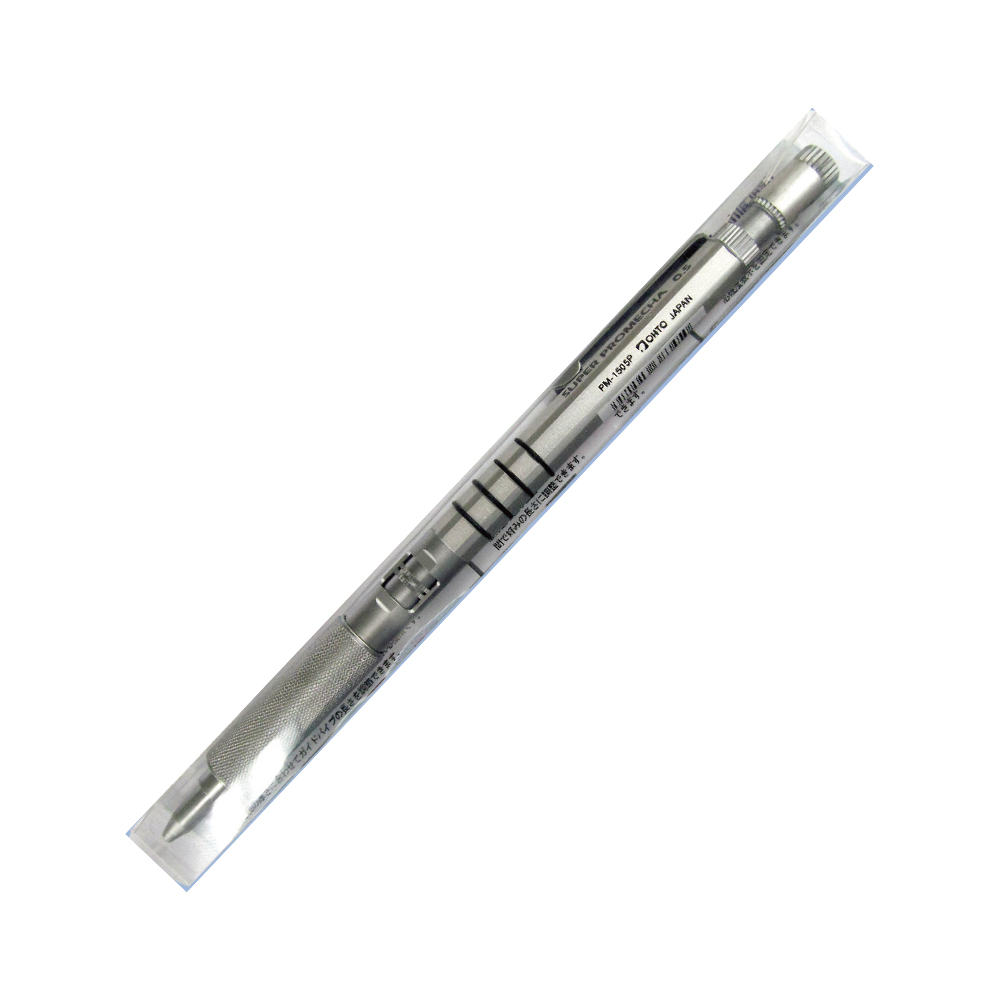

Packaging 2/40
